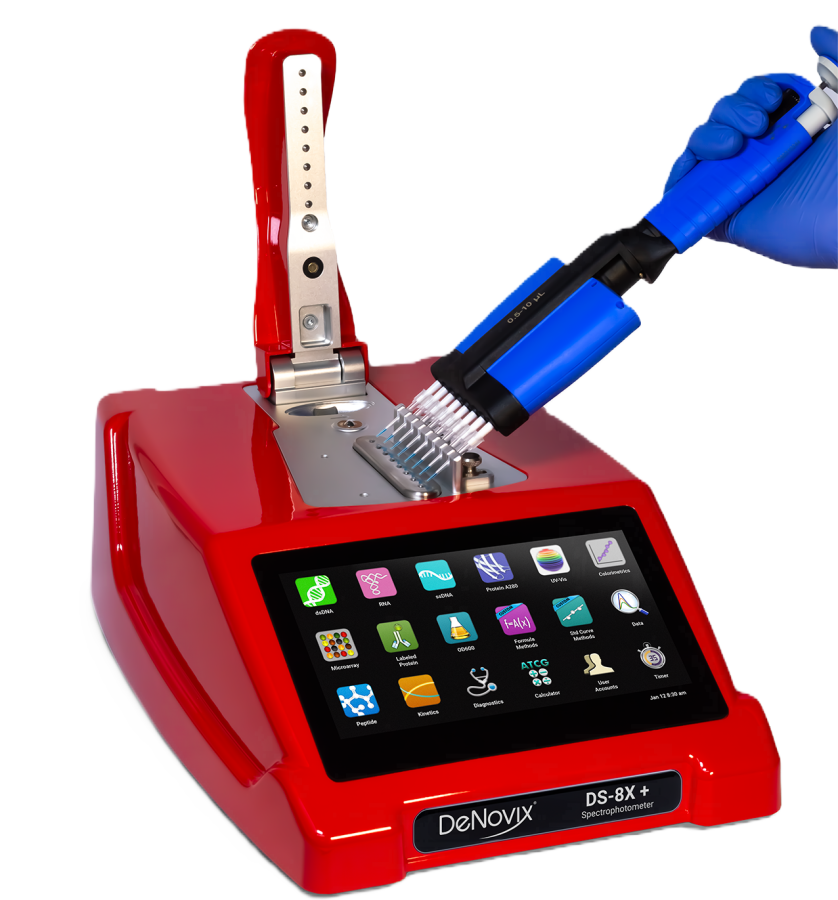

The DeNovix DS-8X spectrophotometer is an 8-channel spectrophotometer enabling high throughput UV-Vis analysis of your samples – analyse 8 samples in as little as 10 seconds, or a single sample in 2 seconds! This compact, user-friendly and maintenance-free instrument delivers full spectrum UV-Vis analysis, making it ideal for rapid nucleic acid and protein quantification. Every compact, easy-to-use instrument is provided with a two year warranty as standard and a great selection of colours to choose from. The DS-8X+ model comes with an additional built-in cuvette module to enable OD600 and cuvette-based kinetics.
Benefits of the DS-8X eight channel spectrophotometer
- High throughput – 8 samples in as little as 10 seconds
- Accurate - SmartPath™ technology algorithms provide real-time optimisation of every sample.
- Maintenance free – no recalibration required for the life of the instrument with 2-year warranty as standard
- EasyApps™ software – intuitive user interface
Applications
The DS-8X excels in a wide range of applications through the ease of use, wide dynamic range, and contamination detection of UV-Vis.
- Nucleic acid quantification: quantifies RNA, dsDNA and ssDNA with 260/280 and 260/230 ratios displayed
- Protein quantification: BCA, Bradford, Lowry and 660 nm colorimetric assays optimised for ease of use along with pre-configured A280 and A205 programs for protein and peptide quantification, respectively
- UV-Vis and custom apps: full UV-Vis spectrum (190-840nm) analysis available for more than just nucleic acid and protein
- Kinetics/OD600: OD600 for estimated cell count calculation and cuvette-based kinetics available with the DS-8X+
| Measurement time | ~10 sec (8 samples); 2 sec (1 sample) | Light source | Pulsed Xenon Flash Lamp |
| Wavelength range | 190 - 840 nm | Connectivity | Wi-Fi, Ethernet, Email, 3 USB ports, Network & Label Printer |
| Absorbance range | 0.04 - 220 (1 cm equivalent) | Display | 7” HD color touchscreen |
| Absorbance precision | 0.04 AU (1 cm) or 1%, whichever is greater | Colours | White, Red, Blue, Silver |
| Absorbance accuracy | 1.5% at 0.75 AU at 260 nm | 21 CFR Pt 11 Ready | Yes |
| Detection limit | ng/µL (dsDNA), 0.1 mg/mL (BSA), 0.6 mg/mL (IgG) | Contamination detection | Purity Ratios with Contamination Alerts |
| Maximum concentration | 11,000 ng/µL (dsDNA), 330 mg/mL (BSA), 161 mg/mL (IgG) | AutoRun | Yes |
| Pathlength | 0.5 mm (Auto Ranging to 0.03 mm) | Approvals | CE, UL/CSA, FCC and Japan CAB |
| Minimum sample volume | 1 µL | Warranty | 2 years |
Table 1. DS-8X technical sepcifications.
Additional components

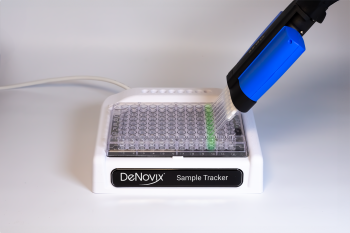

- Sample tracker - LEDs illuminate the correct sample column to measure on your plate
- FX fluorometer module – plug and play accessory to enable fluorometry apps
- Cuvette mode – built-in cuvette option available with the DS-8X+ instrument
| Sample tracker |
