High-throughput DNA library preparation kit: ExpressPlex 2.0

The latest ExpressPlex 2.0 library preparation kit from seqWell is now powered by TnX, supporting reduced bias and uniform coverage for better sequencing. The upgraded kit enables researchers to increase their sequencing throughput, offering significant time saving with libraries prepared and on the sequencer within just half a day. With a short, 100-minute protocol for 96 samples, ExpressPlex achieves consistent read-depths without individual normalisation, offering a simplified workflow which is well-suited for manual, automated and ultra-high throughput library preparation.

Benefits of using the ExpressPlex library preparation kit

  • Improved performance: TnX transposase for reduced bias and improved coverage uniformity
  • 100-minute library prep method (for 96 samples)
  • 30 minutes or less hands-on-time
  • Prep and sequence up to 6144 samples within 24 hours
  • Fragmentation, barcoding and amplification in just one step
  • Designed for automation

Applications of ExpressPlex 2.0

  • Gene editing QC: ideal for quality control in CRISPR-based gene editing, enabling highly reproducible and efficient library prep for downstream sequencing. Compatible with various assays like UDiTaS™, ATAC-Seq, SHARE-Seq, GUIDE-tag, CHANGE-Seq, and RGen-Seq for evaluating genomic alterations.
  • Targeted sequencing: supports targeted sequencing applications, including mutation detection and genetic variant analysis, with reduced hands-on time and greater accuracy.
  • Small genome sequencing: perfect for sequencing small genomes (e.g., plasmids, viruses) with improved accuracy and throughput.
  • Metagenomics: facilitates metagenomic profiling by efficiently preparing DNA libraries for sequencing of complex microbial communities, enhancing microbial diversity insights.
  • Amplicon sequencing: enables streamlined preparation of amplicon libraries for sequencing targeted genomic regions in clinical diagnostics and research.

Compatibility with Beckman Coulter's Echo Acoustic Liquid Handling System

  • Fully automated, ultra-high throughput NGS library prep
  • Sample to sequencer in ~ 2 hours
  • Miniaturisation to 3 µl
  • 384-well format
  • Plasmid sequencing economies of scale
  • TnX-driven uniformity of coverage

ExpressPlex provides a simplified workflow

ExpressPlex One-Step Workflow



Individual normalisation is no longer required to achieve more consistent read-depths with ExpressPlex 2.0

ExpressPlex Results

Comparison to NexTera

Libraries were prepared from three different reference plasmids of varying sizes across a 10-fold input range at full reaction volume for ExpressPlex (16 µL) and Nextera™ XT (50 µL). For each method, inputs ranged from 4-40ng for ExpressPlex (standard input is 16ng) and 0.4 – 4ng for Nextera™ XT (standard input is 1ng).

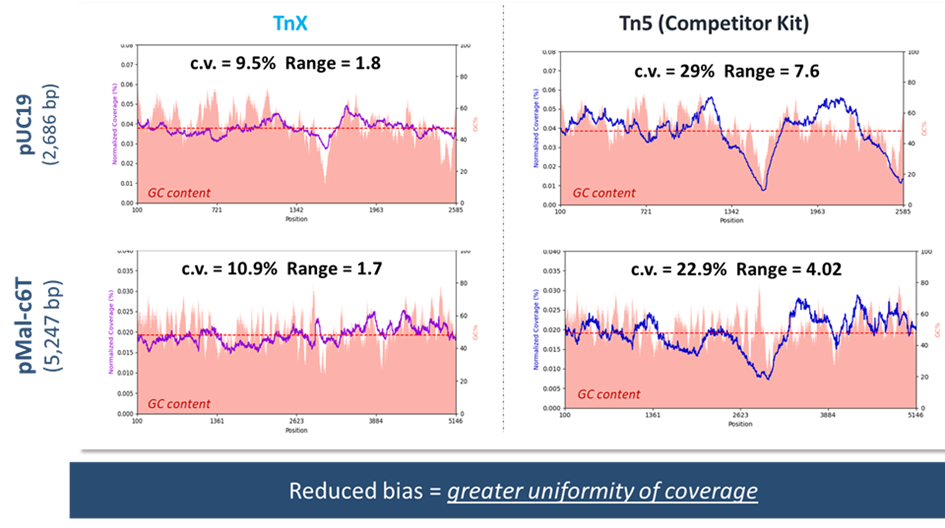

ExpressPlex 2.0 provides uniform coverage for enhanced sequencing

uniformity

ExpressPlex 2.0 stands out as the only library prep kit driven by TnX technology. Designed to minimise insertional bias, TnX enhances coverage uniformity for superior sequencing results. In a direct comparison with a Tn5-based competitor kit for sequencing two distinct plasmids, ExpressPlex 2.0 delivered significantly lower coefficient of variation (CV) values and a more consistent coverage range (max/min).

Nextera and MiSeq are registered trademarks of Illumina, Inc.

Products

Note: product availability depends on country - see product detail page.

Details Cat number & supplier Size Price
ExpressPlex 2.0 Library Prep Kit 301170 · seqWell Inc
301170
seqWell Inc
96 reactions £2394.00
96 reactions
view
ExpressPlex 2.0 Library Prep Kit Set 1000 301176 · seqWell Inc
301176
seqWell Inc
384 reactions £8170.00
384 reactions
view
ExpressPlex 2.0 Library Prep Kit Set 2000 301177 · seqWell Inc
301177
seqWell Inc
384 reactions £8170.00
384 reactions
view
ExpressPlex 2.0 Library Prep Kit Set 3000 301178 · seqWell Inc
301178
seqWell Inc
384 reactions £8170.00
384 reactions
view
ExpressPlex 2.0 Library Prep Kit Set 4000 301179 · seqWell Inc
301179
seqWell Inc
384 reactions £8170.00
384 reactions
view
ExpressPlex 2.0 Library Prep Kit 301180 · seqWell Inc
301180
seqWell Inc
384 reactions £8170.00
384 reactions
view
